Hinge Pin, Pacific Coast Marine
Move your mouse over image or click to enlarge
Hinge Pin, Pacific Coast Marine Hinge Pin, Pacific Coast Marine Hinge Pin, Pacific Coast Marine Hinge Pin, Pacific Coast Marine Hinge Pin, Pacific Coast Marine Hinge Pin, Pacific Coast Marine

Freeman Marine, Pacific Coast Marine

Hinge Pin, Pacific Coast Marine

Hinge Pin, Pacific Coast Marine

0462-2682

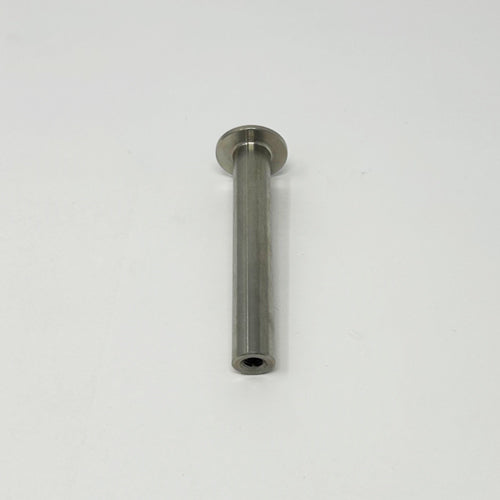

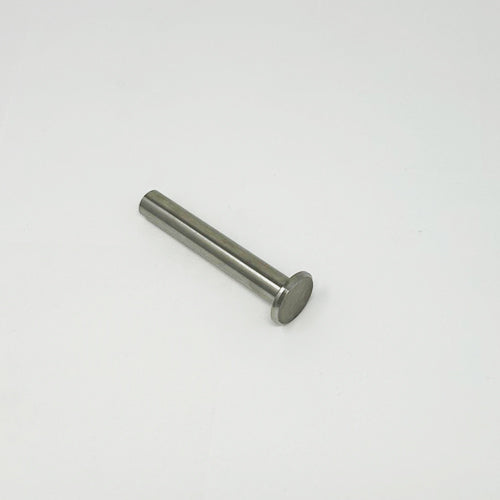

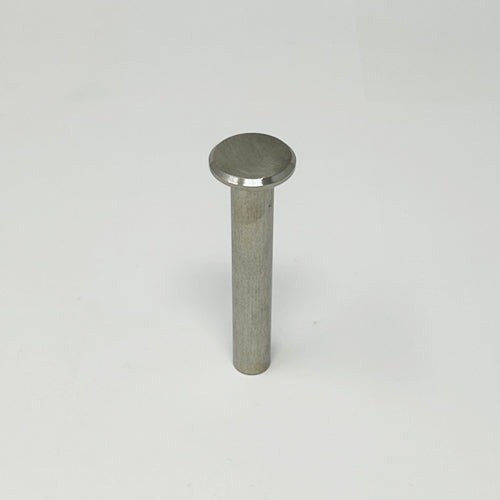

Hinge Pin for Pacific Coast Marine Surface Mount Hinge Assembly

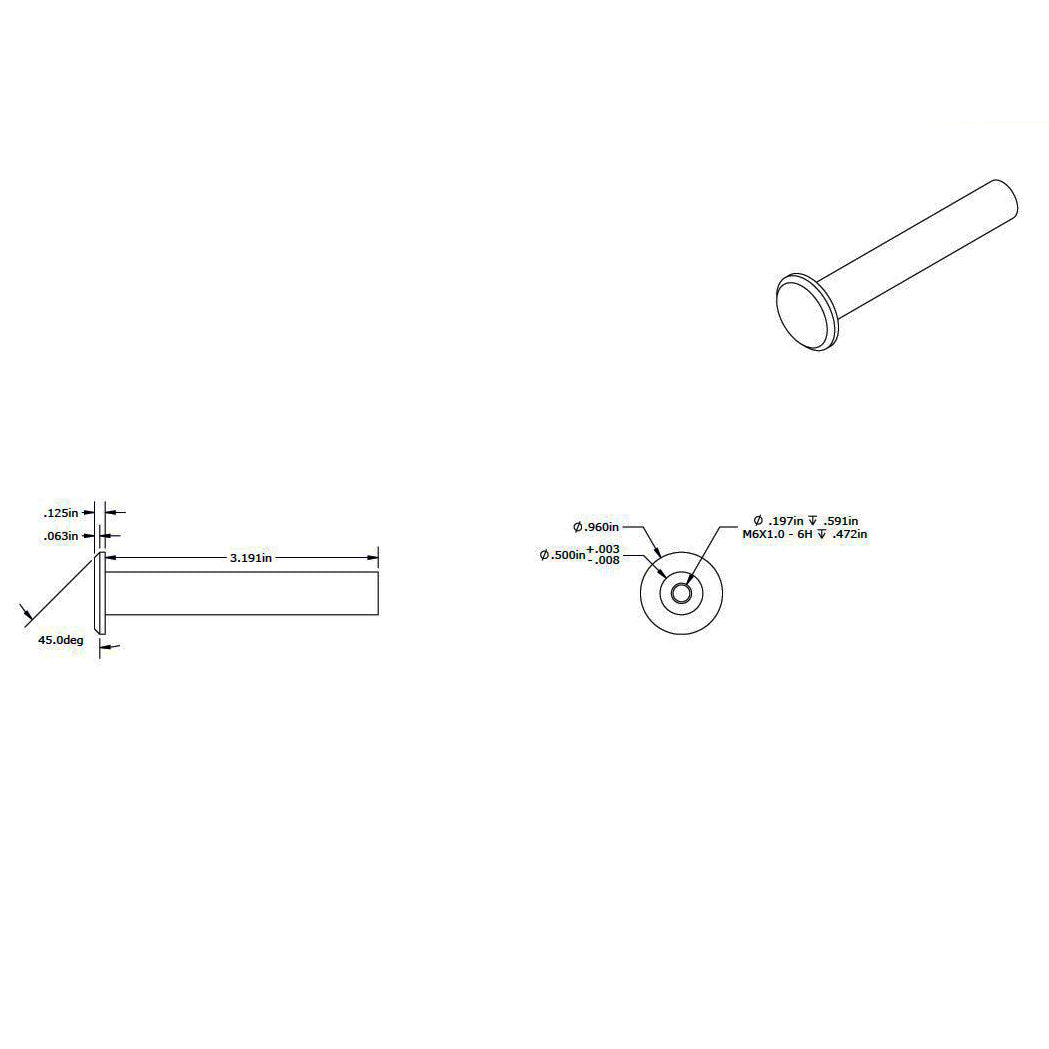

Size: 0.96" x 3.3"
Material: 316 Stainless Steel

Sold: Each

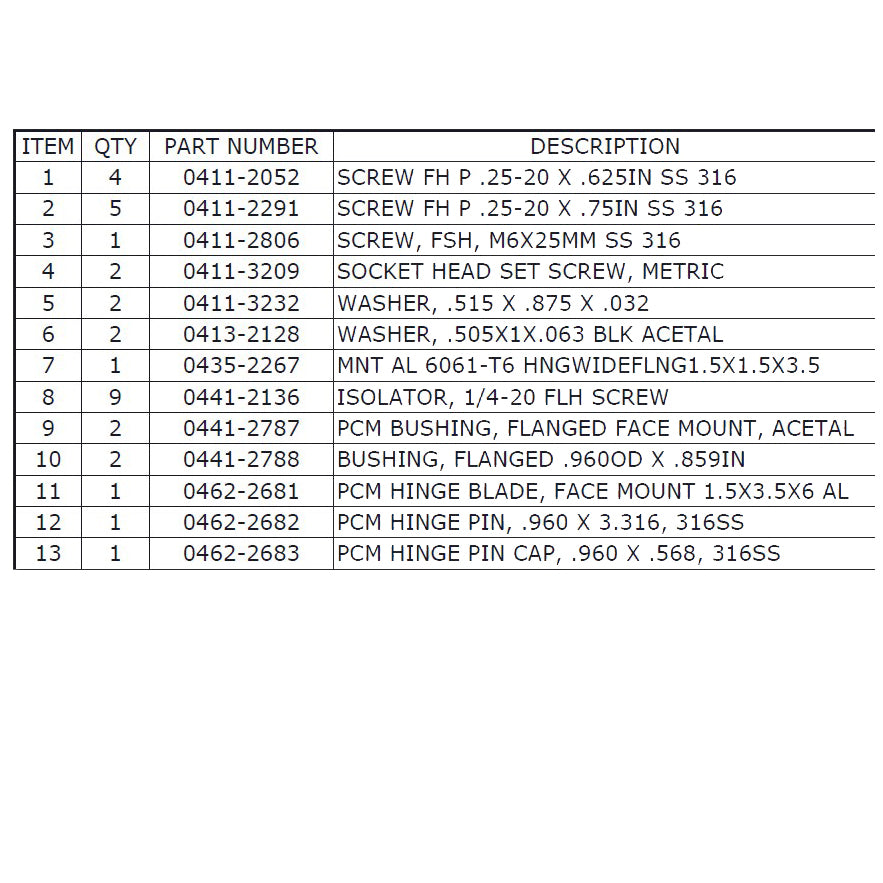

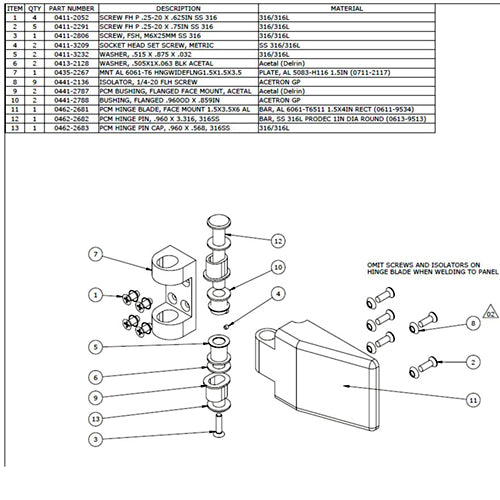

Compatibility: Pacific Coast Marine 1220 Doors, (item 12 of Part 0461-2301)



View full details

Have a question?

For more information or to request a quote click on the button below and one of our knowledgeable marine representatives will be in contact with you shortly.

Contact Us
