Diamond Sea Glaze

Hinge Only, Butt, DSG Doors

Hinge Only, Butt, DSG Doors

103722

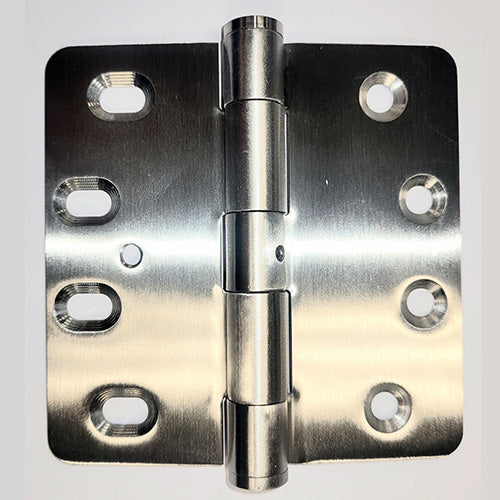

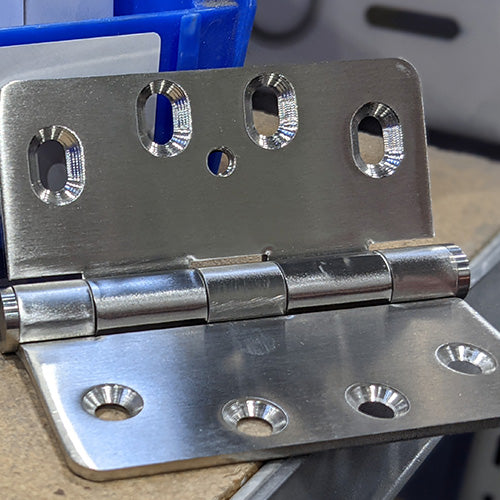

Hinge, Butt used on Diamond Sea Glaze Doors

Size: 3.5" x 4" x 3mm butt hinge with one side elongated holes
Material: MT SS316, Satin Finish

Sold: Each, Hinge Only (for Kit, see 107100)

Compatibility: Diamond Sea Glaze Doors 150, 250 and 575 (Default Installation)

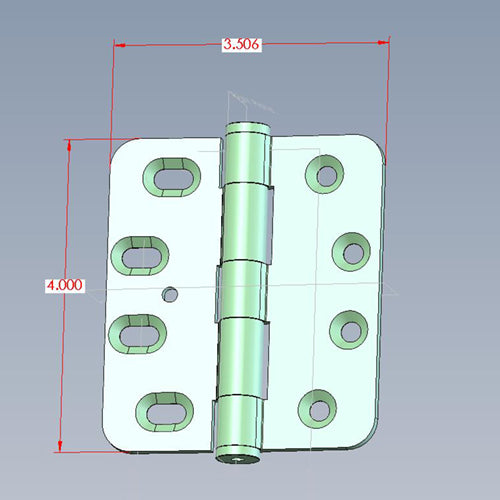

103722 Drawing

View full details
