Freeman Marine

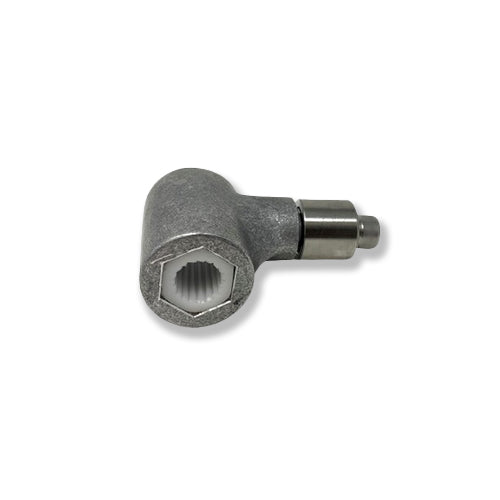

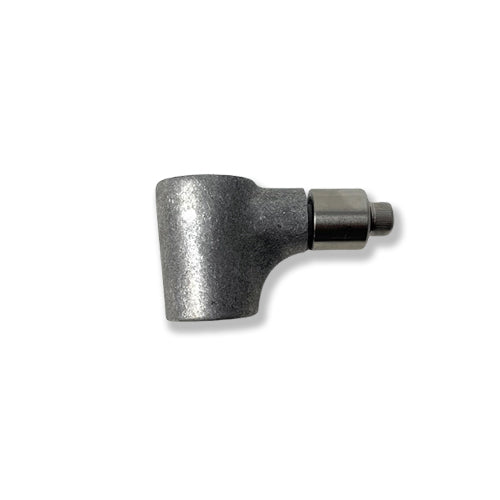

Dog Assembly, Quick-Acting, 1.5"

Dog Assembly, Quick-Acting, 1.5"

0221-1002

Quick-Acting Dog Assembly, 1.5" Standard

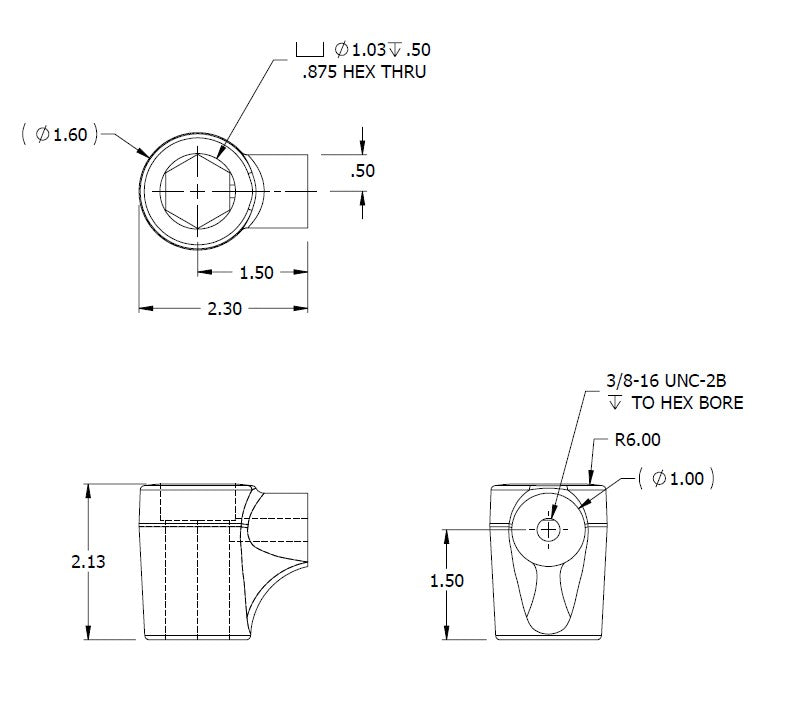

Size: 2.13" x 2.3"; 1.50" to center of bearing
Material: Aluminum, SS 316, Acetron

Sold: Each

Compatibility: Freeman Marine MLB Doors, RBM Hatches; Model 1420, 1430, Doors; Model 3430 Hatches

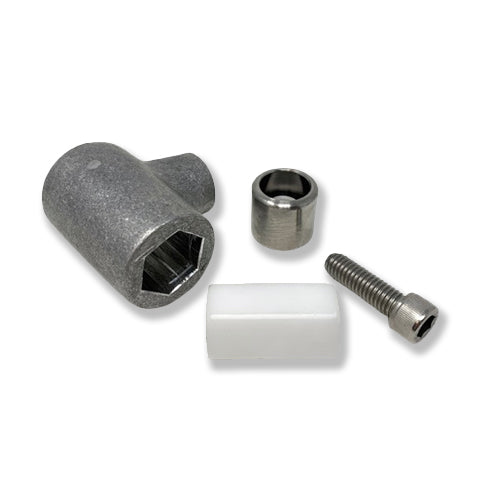

Assembly Includes:
0221-2002 (DOG, STD 1.5 W/MNT HEX BROACH)
0441-2016 (BEARING, ROLLER DOG SS)
0411-2085 (SCREW, SH A .375-16X1.25IN SS 316 PEL)
0441-2114 (INSERT, SPLINED HEX 1.5 OAL)
